iButton Accessories

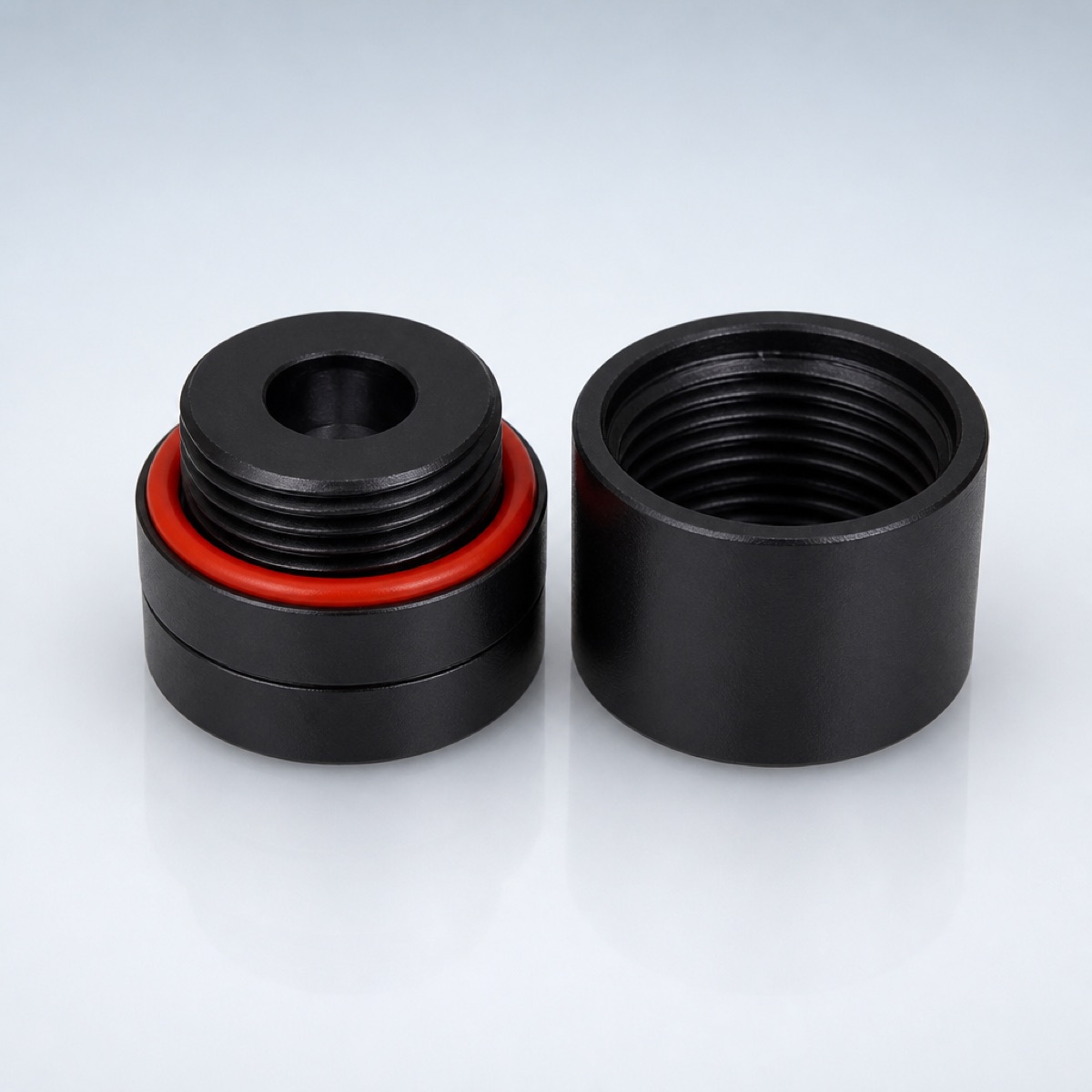

IButton DS9107 Capsule For Waterproofing Thermochron Loggers
Model DS9107+
£64.00(£76.80 incl. VAT)
In stock · 5–10 working days delivery
Free Delivery UK orders over £500
Money Back Guarantee · 100% refund
UK Company
Based in Newbury
40 Years Experience
Measys Group Ltd
Expert Engineers
Talk to our engineers
ModelDS9107+
TypeiButton Accessories
Delivery5–10 working days
How it works
From logger to data in three steps
Place the iButton, it records on its own, then download the readings with a USB adapter and software.
Place the logger
Attach the iButton to the goods, vehicle or location you need to monitor.
It records automatically
Measures temperature or humidity and stores thousands of readings in memory.
Download the data
Connect via USB adapter and software to view, graph and export the log.
*USB adapter, cable and software required
Description
The iButton® Capsule is a mechanical enclosure to protect Temperature Logger iButtons (DS1921 and DS1922 series) from moisture, solvents and pressure. It provides IP68 protection to the iButton inside. The protection level exceeds the "Water Resistant 3 ATM" requirements. Temperature Range of the Capsule is -40 °C to +140°C.
The DS9107 consists of a base with the cavity for a F5 iButton, a screw-in plug with O-ring to seal the enclosure, and a top with two stainless-steel screws to mount the iButton Capsule to a cable, e.g. to measure temperature at different levels within a liquid. The cable is inserted into the notch of the plug where it is held in place by the matching protrusion of the top piece.
Base, plug, and top are made of polyphenylene sulfide (PPS). This material is chosen for its mechanical properties (remains stable during both long and short-term exposure to high temperatures), inherent flame resistance, and outstanding chemical resistance (inert to steam, strong bases, fuels and acids). Although PPS is virtually insoluble below 200°C, it can be attacked by chlorinated hydrocarbons. The silicone O-ring matches the temperature and chemical qualities of the PPS. In addition, it is resistant to sunlight, ozone, oxygen, and UV light. The chemical stability of the screws does not compromise that of the PPS and the silicone.
Specifications
- Weight18.4g
- Dimensionsdia 25.4 x 28mm deep
- Seal ratingIP68
- No. of Open/Close Cycles500 (with max. Torque applied)
- No. of Autoclave Cyclesmin.100
(From 25°C @ 101.3kPa (14.7psia) to 121°C @ 205kPa (29.7psia), tightened to maximum torque) - Thermal Response Time Constanttyp. 150s
(time to get to 63% of final value)
Technical
Applications
- Autoclave Sterilization
- Monitoring of beverage production
- Scientific research
- Seawater temperature profiling
