iButton Accessories

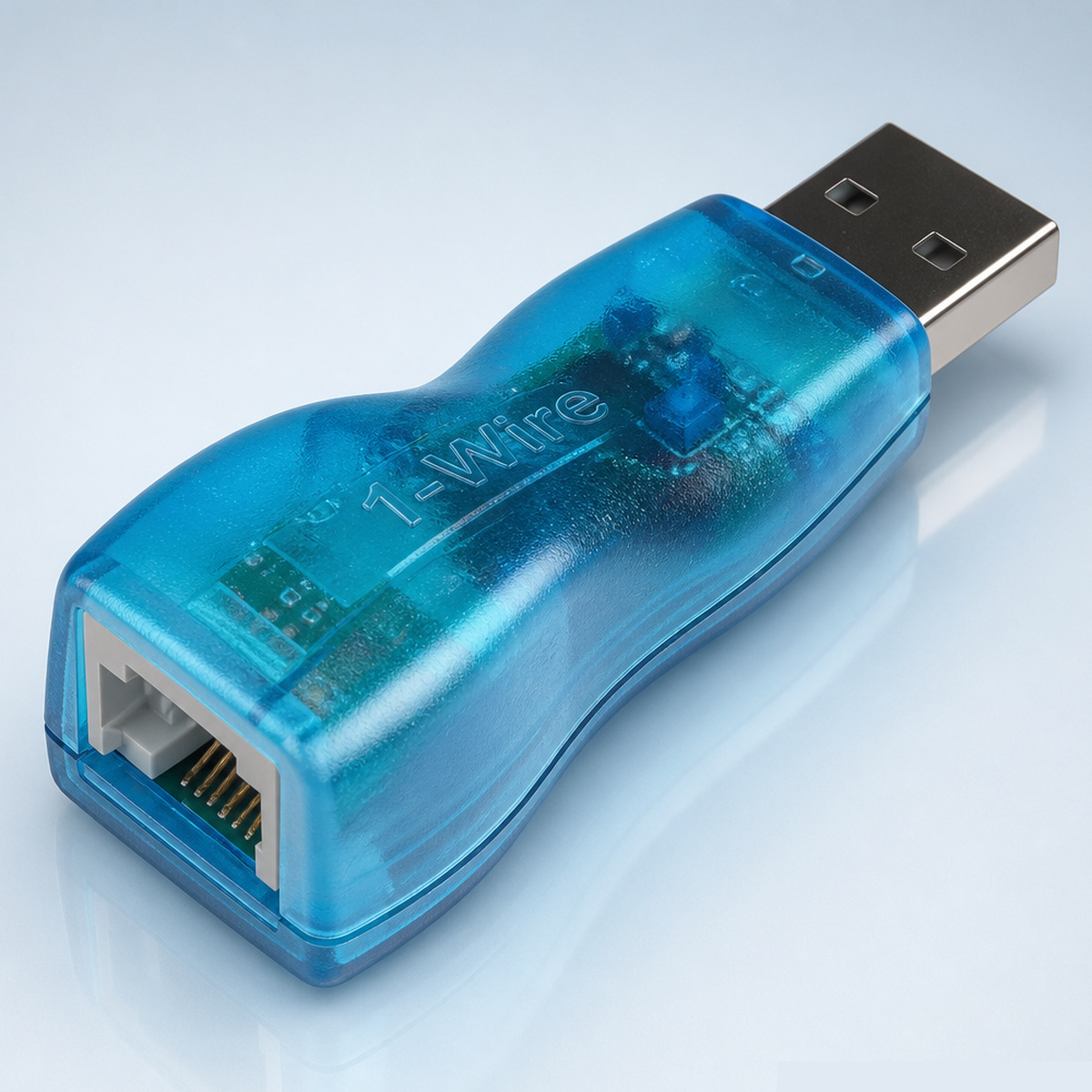

DS9490R USB To 1-wire IButton Adapter
Model DS9490R
£43.00(£51.60 incl. VAT)
In stock · 5–10 working days delivery
Free Delivery UK orders over £500
Money Back Guarantee · 100% refund
UK Company
Based in Newbury
40 Years Experience
Measys Group Ltd
Expert Engineers
Talk to our engineers
ModelDS9490R
TypeiButton Accessories
Delivery5–10 working days
How it works
From logger to data in three steps
Place the iButton, it records on its own, then download the readings with a USB adapter and software.
Place the logger
Attach the iButton to the goods, vehicle or location you need to monitor.
It records automatically
Measures temperature or humidity and stores thousands of readings in memory.
Download the data
Connect via USB adapter and software to view, graph and export the log.
*USB adapter, cable and software required
Description
The DS9490R is a USB bridge with 1-Wire® RJ11 interface to accommodate 1-Wire receptacles and networks. This needs to be combined with an i-button reader cable (DS1402 series) to communicate with the Thermochron Temperature Data Loggers.
Features
- High-Speed 12Mbps Universal Serial Bus (USB) Interface
- Supports Standard and Overdrive 1-Wire Communication
- Slew-Rate-Controlled 1-Wire Timing and Active Pullup for Improved 1-Wire Network Performance
- DS9490R has an RJ11 Interface for Standard Connectivity Accessories such as the DS1402D-DR8
- DS9490B has an iButton Interface and Retains a Fixed iButton
- Built-In Custom DS2401 Identification Chip
- Reads all 1-Wire and iButton Devices. Writes All Except EPROM 1-Wire/iButton Devices
Technical
Description
The DS9490R is a USB bridge with 1-Wire® RJ11 interface to accommodate 1-Wire receptacles and networks. This needs to be combined with an i-button reader cable (DS1402 series) to communicate with the Thermochron Temperature Data Loggers.
Features
- High-Speed 12Mbps Universal Serial Bus (USB) Interface
- Supports Standard and Overdrive 1-Wire Communication
- Slew-Rate-Controlled 1-Wire Timing and Active Pullup for Improved 1-Wire Network Performance
- DS9490R has an RJ11 Interface for Standard Connectivity Accessories such as the DS1402D-DR8
- DS9490B has an iButton Interface and Retains a Fixed iButton
- Built-In Custom DS2401 Identification Chip
- Reads all 1-Wire and iButton Devices. Writes All Except EPROM 1-Wire/iButton Devices
